800.558.5571

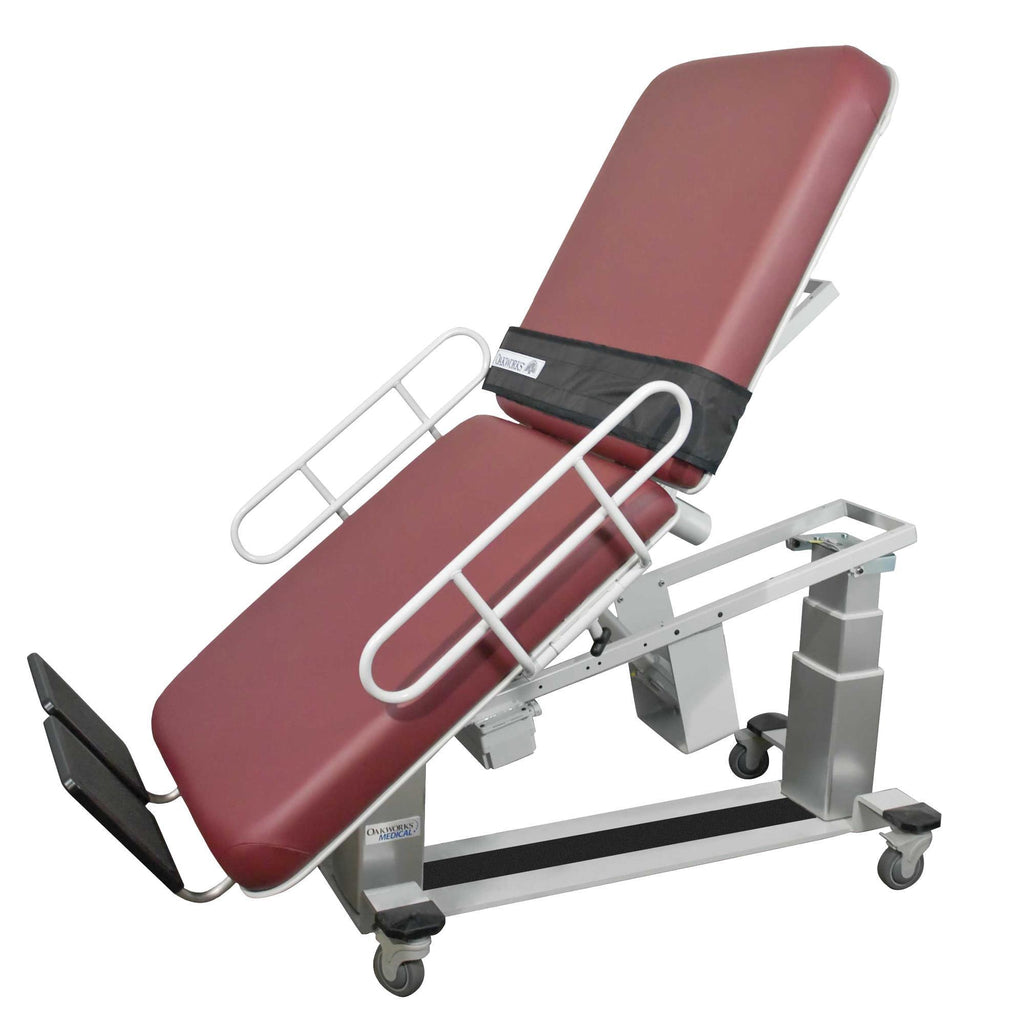

Oakworks Ultrasound Table / Vascular with Fowler
CE Marked
This item conforms with health and safety standards in Europe.
Description
The Ultrasound Vascular Table with Fowler provides the following features: • Dual towers and electric fowler makes 70° reverse Trendelenburg a reality. • Effective standing and full weight bearing foot boards. • No more sitting on the floor to scan. • Split drop foot board makes non-weight bearing scans safe and easy. • Elevate the upright table to reduce/prevent technologist bending to reach lower extremity veins. • Head rest and pad for carotid studies provides comfort and access for patient and sonographer. Standard features: • Electric Height Range 23” - 40” • Electric Fowler • Integrated Foot Board (split, drop away) • Locking Casters • Patient Restraint Strap • Side Rails (2) • Hand Control (All movements) • Paper Roll Holder • TerraTouch™ Upholstery • Electric Height Range 23” - 40” • 2 Section Top: Fowler 34”; Seat 38” • 3” Multi-layer Padding • Trendelenburg: 15º • Reverse Trendelenburg: 40º + Electric Fowler = 70º • Patient Weight Capacity: 600 lbs. • Table weight: 175 lbs. • Warranty: Frame, Understructure, Upholstery, and Padding: 3 years; Electrical and Moving Parts: 3 years parts, 1 year labor • FDA Listed, cETL Approved, CE Marked Optional upgrades: • Central Base Locking System • Sliding Cardio Panel - Manual - 30in. width + left side only • Adjustable Access / Back Support (Left) • Adjustable Access / Back Support (Right) • Foot Control (All movements) • Detachable Arm Board • T-Rail Adapter • QuickLock™ Head Rest and Pad • Accessory Mounting Plate (fowler end only) • 12” Length Table Extender (same width as table)Specifications
•Dimensions: 27" or 30"W x Fowler 34"L, Seat 38"L x 23"-40" Height Range•Electrical: 120 VAC, 15 Amp, 60Hz
•Suggested Outlet: 3 Prong Hospital Grade GFCI required
•Warranty: Parts 3 years, Labor 1 year
•Certifications: FDA Listed, cETL Approved, CE Marked
•Installed By: Universal (if setup is included with order) or Client
Description
The Ultrasound Vascular Table with Fowler provides the following features: • Dual towers and electric fowler makes 70° reverse Trendelenburg a reality. • Effective standing and full weight bearing foot boards. • No more sitting on the floor to scan. • Split drop foot board makes non-weight bearing scans safe and easy. • Elevate the upright table to reduce/prevent technologist bending to reach lower extremity veins. • Head rest and pad for carotid studies provides comfort and access for patient and sonographer. Standard features: • Electric Height Range 23” - 40” • Electric Fowler • Integrated Foot Board (split, drop away) • Locking Casters • Patient Restraint Strap • Side Rails (2) • Hand Control (All movements) • Paper Roll Holder • TerraTouch™ Upholstery • Electric Height Range 23” - 40” • 2 Section Top: Fowler 34”; Seat 38” • 3” Multi-layer Padding • Trendelenburg: 15º • Reverse Trendelenburg: 40º + Electric Fowler = 70º • Patient Weight Capacity: 600 lbs. • Table weight: 175 lbs. • Warranty: Frame, Understructure, Upholstery, and Padding: 3 years; Electrical and Moving Parts: 3 years parts, 1 year labor • FDA Listed, cETL Approved, CE Marked Optional upgrades: • Central Base Locking System • Sliding Cardio Panel - Manual - 30in. width + left side only • Adjustable Access / Back Support (Left) • Adjustable Access / Back Support (Right) • Foot Control (All movements) • Detachable Arm Board • T-Rail Adapter • QuickLock™ Head Rest and Pad • Accessory Mounting Plate (fowler end only) • 12” Length Table Extender (same width as table)Specifications
•Dimensions: 27" or 30"W x Fowler 34"L, Seat 38"L x 23"-40" Height Range•Electrical: 120 VAC, 15 Amp, 60Hz
•Suggested Outlet: 3 Prong Hospital Grade GFCI required
•Warranty: Parts 3 years, Labor 1 year
•Certifications: FDA Listed, cETL Approved, CE Marked
•Installed By: Universal (if setup is included with order) or Client
